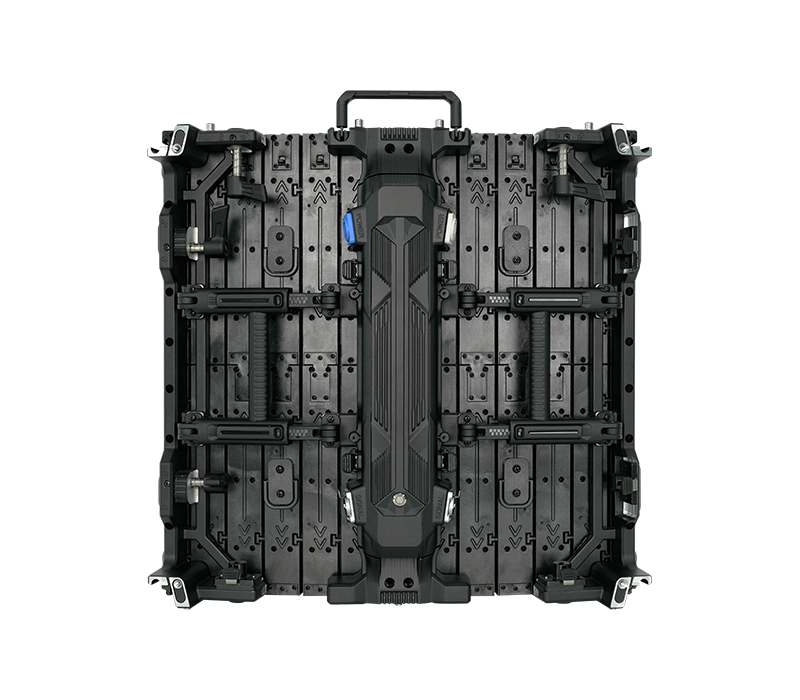

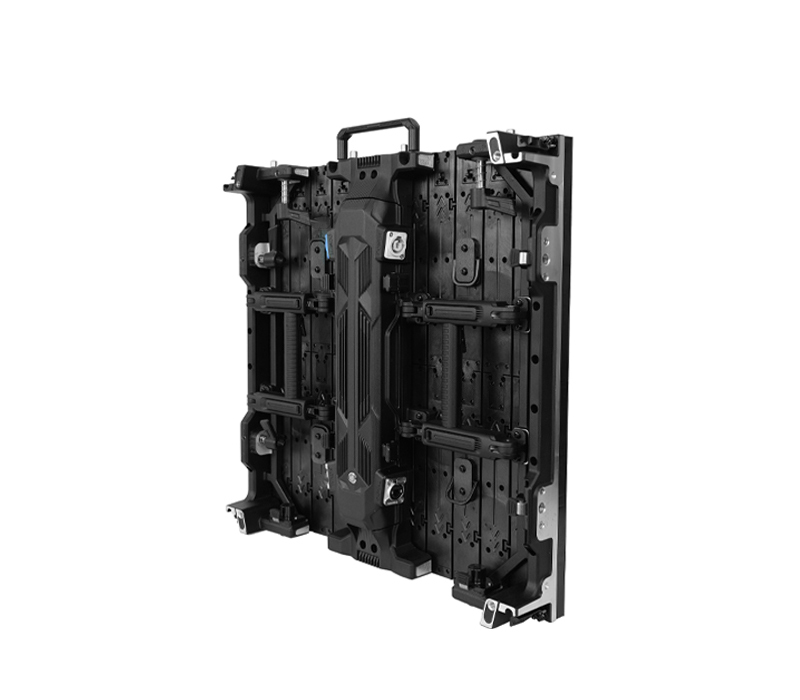

IRC-F Series
-

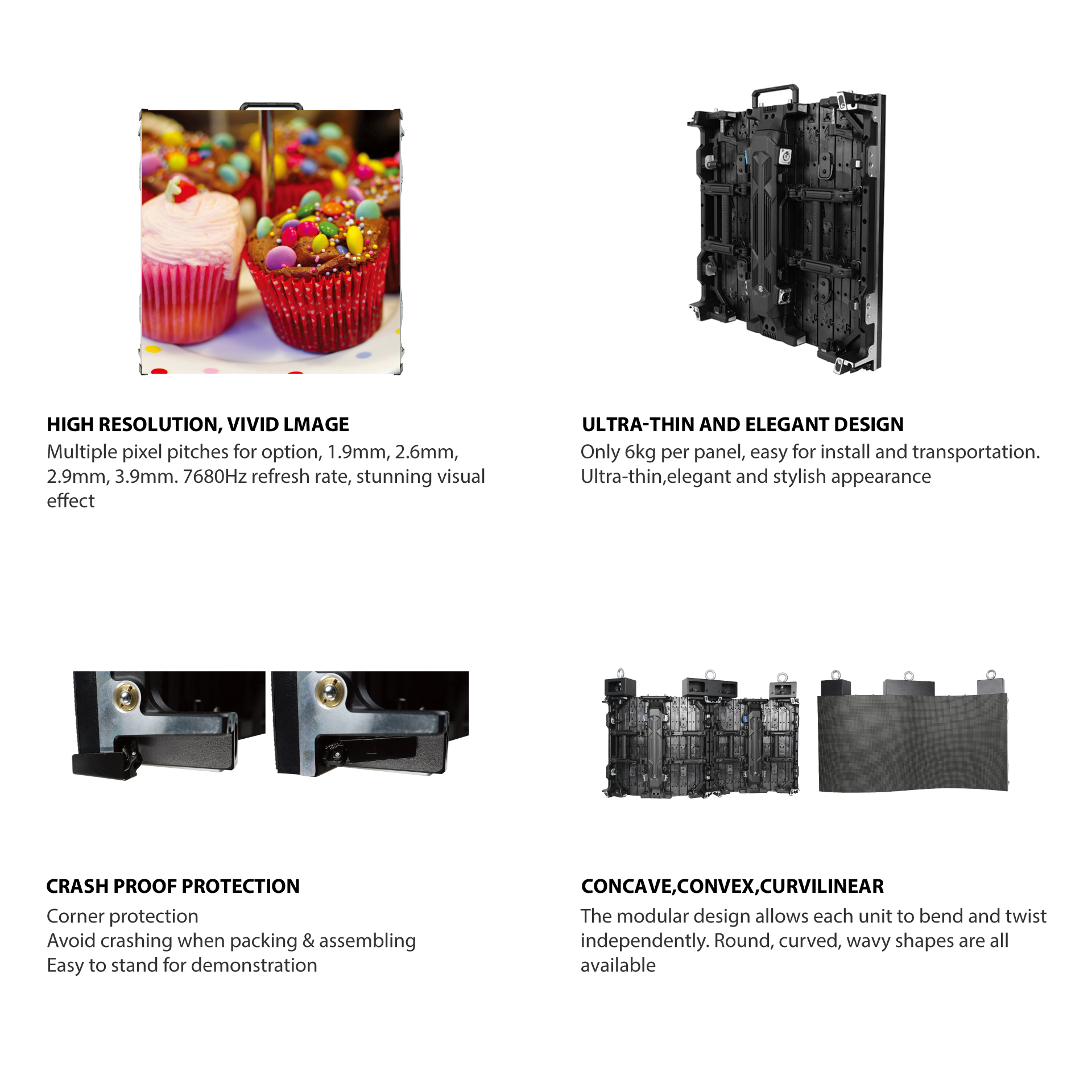

The IRCF Series offers high resolution with multiple
pixel pitches and a 7680Hz refresh rate for crisp
visuals. It's ultra-thin design ensures lightweight
panels that are easy to install and transport. With

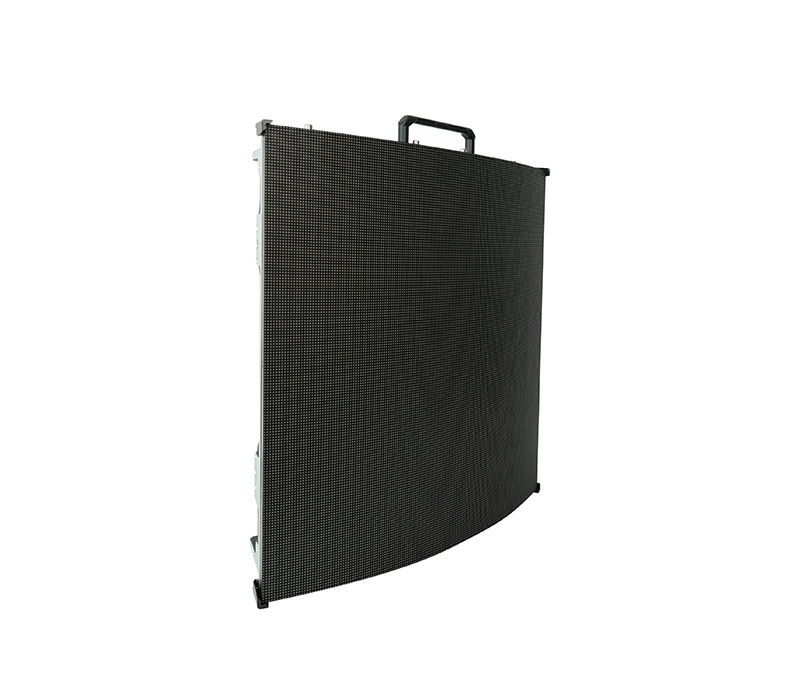

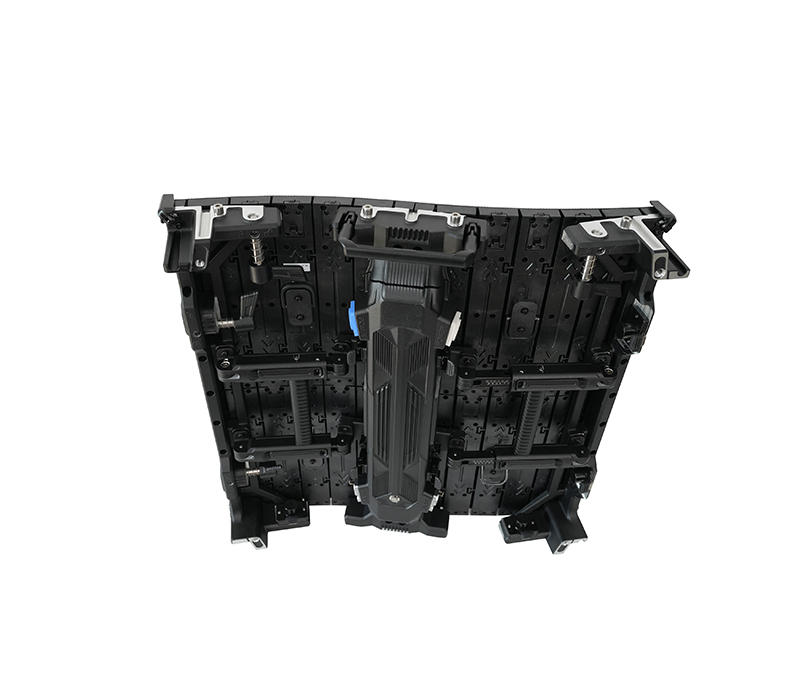

crash-proof corner protection and curved panel
options supporting bending and twisting, it's perfect
for dynamic indoor settings.
RELATED PRODUCTS
| IRCF-1.9 | IRCF-2.6 | IRCF-2.9 | IRCF-3.9 | |
| Physical Pitch | 1.95mm/0.07“ | 2.6mm/0.1” | 2.97mm/0.12“ | 3.91mm/0.15” |
| Pixel Configuration | SMD1515 | SMD1515 | SMD2121 | SMD2121 |
| Pixel Density | 262144px/m2 | 147456px/m2 | 112896px/m2 | 65536px/m2 |
| Module Dimension(WxH) | 250x250mm / 9.84"x9.84" | |||
| Panel Dimension(WxHxD) | 500x500x80mm / 19.68"x19.68" | |||
| No. of Module/panel(WxH) | 2x2/2x4 | |||
| Module Resolution | 128x128px | 96x96px | 84x84px | 64x64px |
| Panel Resolution | 256x256px | 192x192px | 168x168px | 128x128px |
| Panel Material | Die-casting Aluminum | |||
| Panel Weight | 6kg (13.22lbs) | |||
| Gray Scale | 16bit | |||
| Contrast Ratio | 4000:1 | |||
| Avg. Power Consumption | 50w/panel | 50w/panel | 28w/panel | 28w/panel |
| Max. Power Consumption | 145w/panel | 145w/panel | 85w/panel | 85w/panel |
| Operating Temp/Humidity | -10°C - 60°C / 10% - 60% | |||
| Storage Temp/Humidity | -30°C - 60°C/ 10% - 60% | |||
| Refresh Rate | 7680hz | |||
| Brightness | ≥600nits | |||
| Viewing Angle(H/V) | 160°/140° | |||
| Expected Lifetime | 100,000hrs | |||
| Max. Stacking/Hanging | 20/10 | |||
| Service | Front/Rear | |||
| IP Rating(Front/Rear) | IP40/IP21 | |||
| Certification | CCC,CE,ETL,RoHS | |||
