IRB Series
-

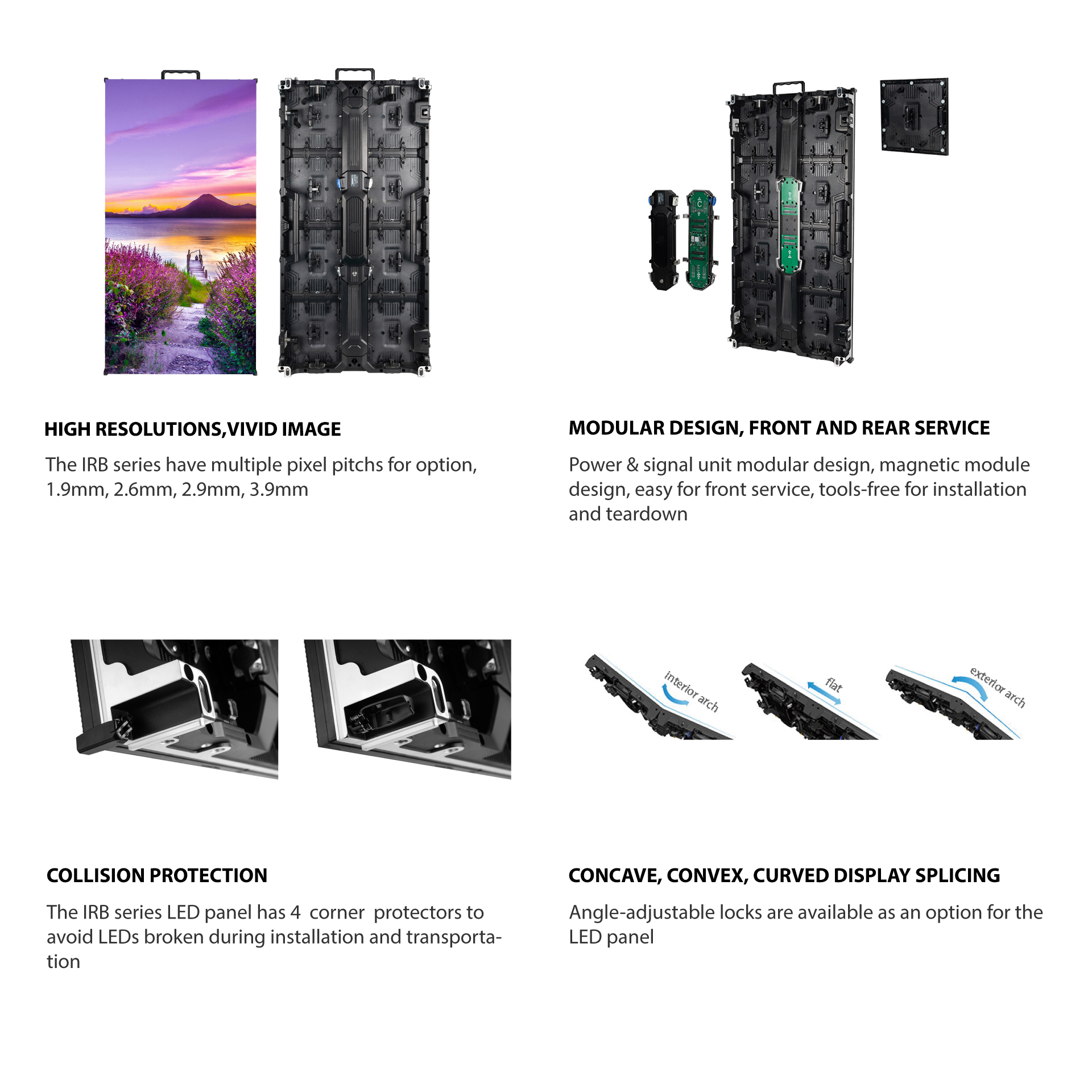

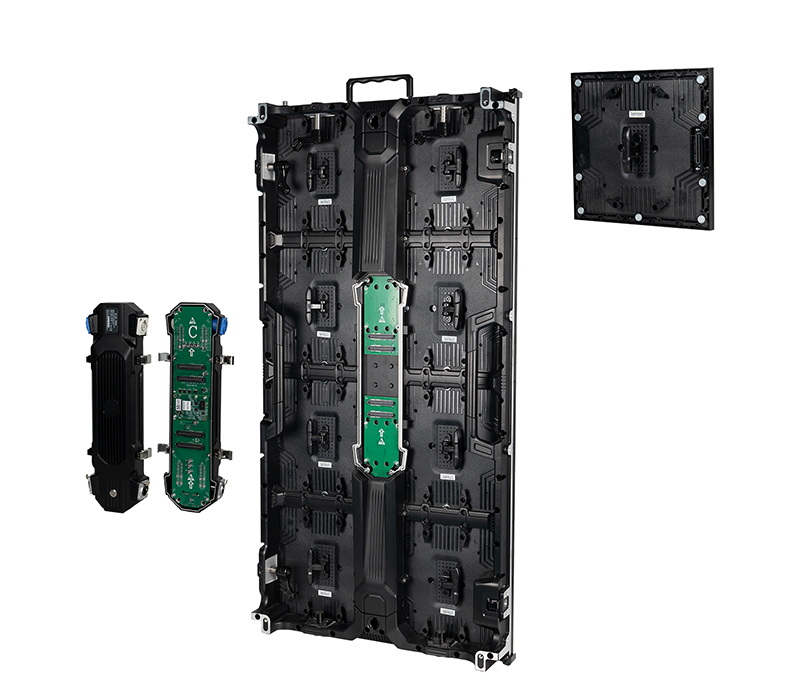

IRB Series LED video panel is designed for Rental & Stage application, has pixel pitch 1.9mm, 2.6mm, 2.9mm, 3.91mm for option. Magnetic module and modular power unit design is very easy for site maintenance. It is a professional led video panel for all kinds of events application scenario.
RELATED PRODUCTS
| IRB-1.5 | IRB-1.9 | IRB-2.6 | IRB-2.9 | IRB-3.9 | |
| Physical Pitch | 1.56mm/0.07“ | 1.9mm/0.07“ | 2.6mm/0.1” | 2.9mm/0.12“ | 3.9mm/0.15” |
| Pixel Configuration | SMD1212 | SMD1515 | SMD1515 | SMD2121 | SMD2121 |
| Pixel Density | 409600px/m2 | 262144px/m2 | 147456px/m2 | 112896px/m2 | 65536px/m2 |
| Module Dimension(WxH) | 250x250mm / 9.84"x9.84" | ||||

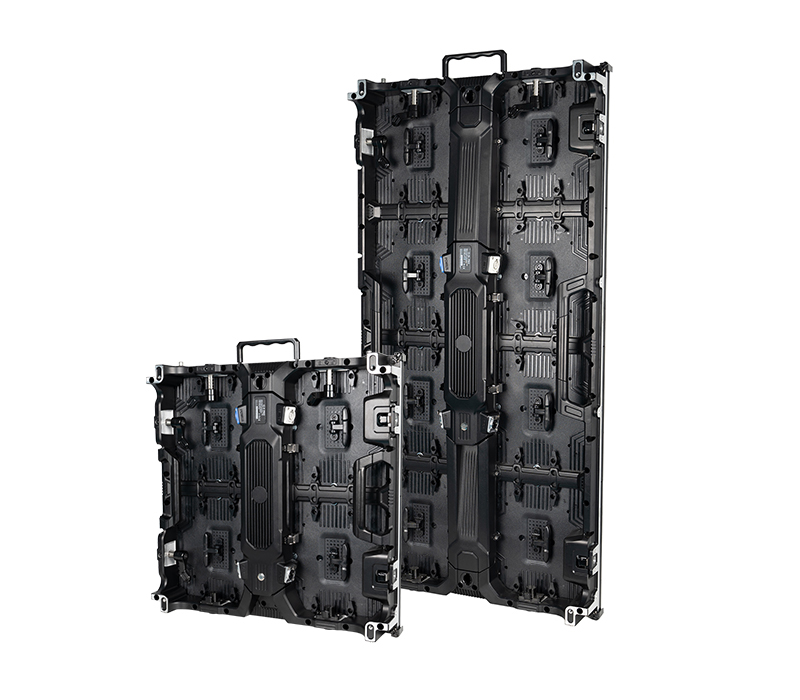

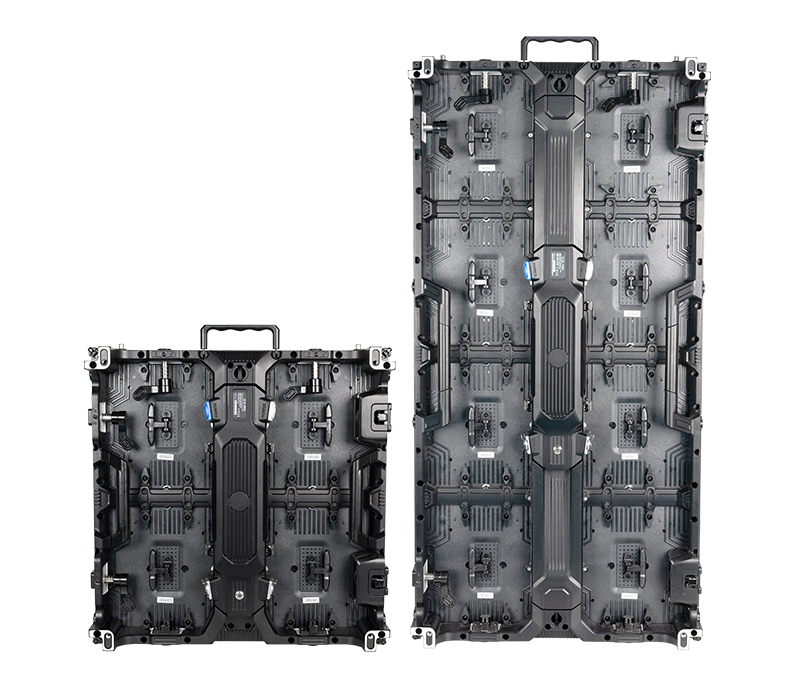

| Panel Dimension(WxHxD) | 500x500x80mm / 19.68"x19.68"x3.14" 500x1000x80mm / 19.68"x39.37"x3.14" | ||||
| No. of Module/panel(WxH) | 2x2/2x4 | ||||
| Module Resolution | 160x160px | 128x128px | 96x96px | 84x84px | 64x64px |
| Panel Resolution | 320x320px 320x640px | 256x256px 256x512px | 192x192px 192x384px | 168x168px 168x336px | 128x128px 128x256px |
| Panel Material | Die-casting Aluminum | ||||
| Panel Weight | 8kg/14kg (17.63lbs / 30.86lbs) | ||||
| Gray Scale | 16bit | ||||
| Contrast Ratio | 4000:1 | ||||
| Avg. Power Consumption | 50w/panel 100w/panel | 50w/panel 100w/panel | 50w/panel 100w/pane | 28w/panel 56w/panel | 28w/panel 56w/panel |
| Max. Power Consumption | 145w/panel 290w/panel | 145w/panel 290w/panel | 145w/panel 290w/panel | 85w/panel 165w/panel | 85w/panel 165w/panel |
| Operating Temp/Humidity | -10°C - 60°C / 10% - 60% | ||||
| Storage Temp/Humidity | -30°C - 60°C/ 10% - 60% | ||||
| Refresh Rate | 7680hz | ||||
| Brightness | >600nits | ||||
| Viewing Angle(H/V) | 160°/140° | ||||
| Expected Lifetime | 100,000hrs | ||||
| Max. Stacking/Hanging | 20/10 | ||||
| Service | Front/Rear | ||||
| IP Rating(Front/Rear) | IP40/IP21 | ||||
| Certification | CCC,CE,ETL,RoHS | ||||
