OBF Series
-

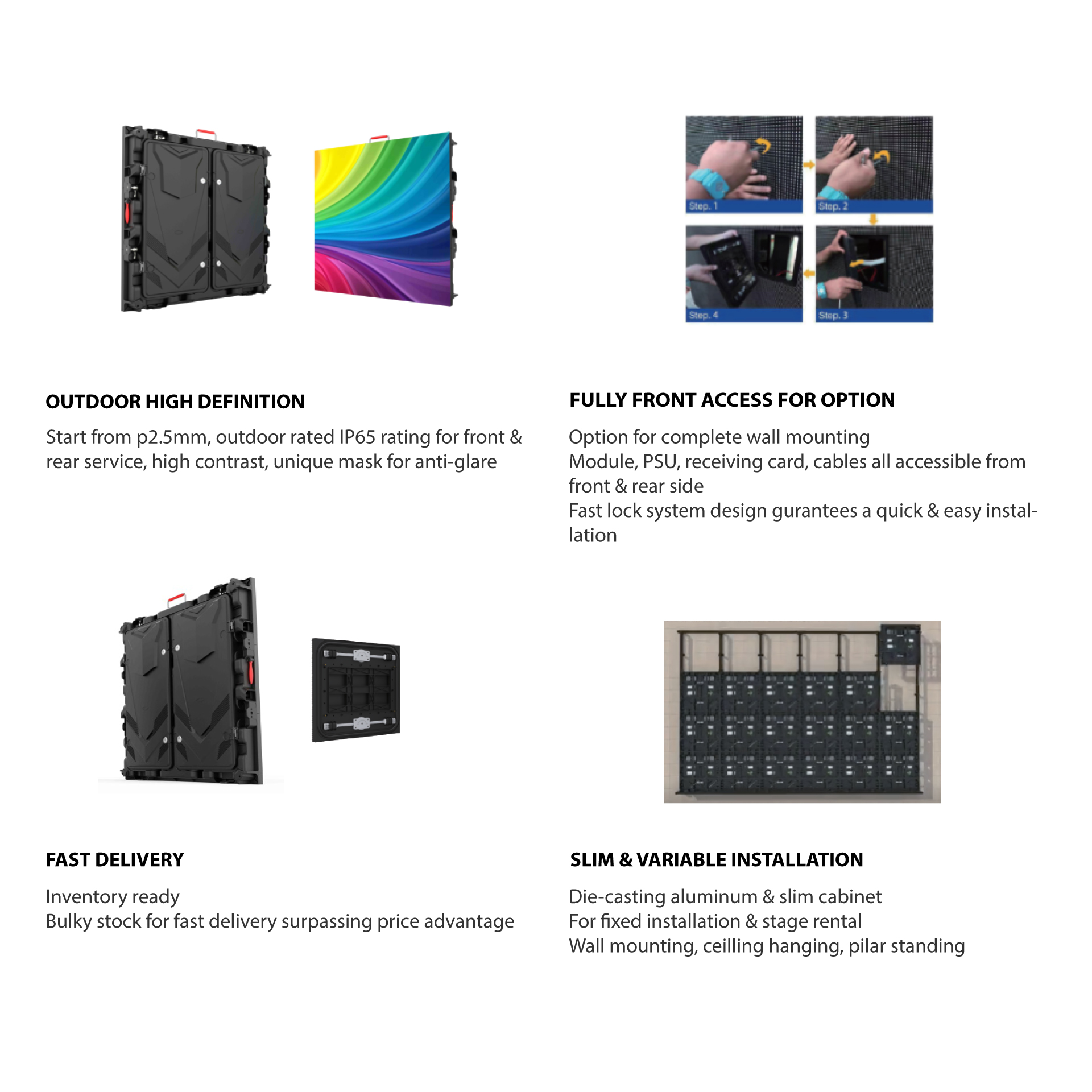

HD resolution, fully front access for option, slim and stylish die cast design. suitable for billboards, outdoor signage, and more. Ideal for outdoor applications however daylight and rainy, good precision-solid and reliable, it will eliminate the heat and minimize the temperature of the inner screen, ensuring the screen normally works for a long time.
| OB-2 | OB-3 | OB-4 | OB-5 | OB-6 | OB-8 | OB-10 | |
| Physical Pitch | 2.5mm/0.09" | 3.076mm/0.12" | 4mm/0.16" | 5mm/0.20" | 6.67mm/0.26" | 8mm/0.31" | 10mm/0.39" |
| Pixel Configuration | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density | 160000px/m2 | 105688px/m2 | 62500px/m2 | 40000px/m2 | 22500px/m2 | 15625px/m2 | 10000px/m2 |

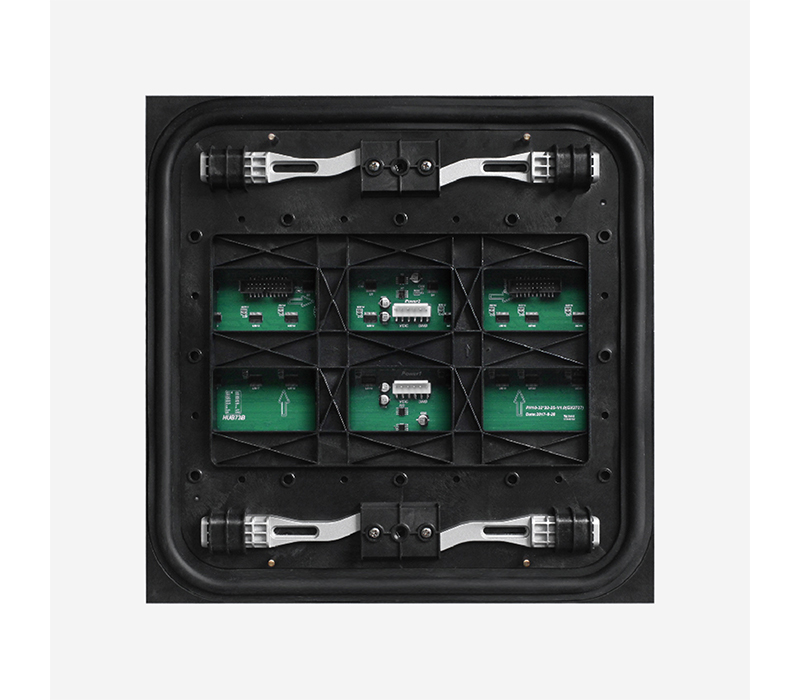

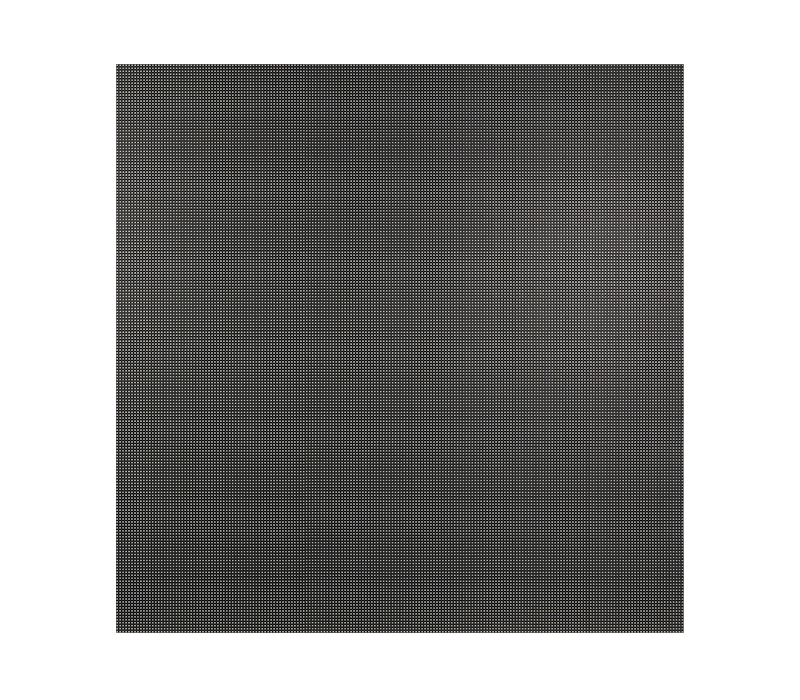

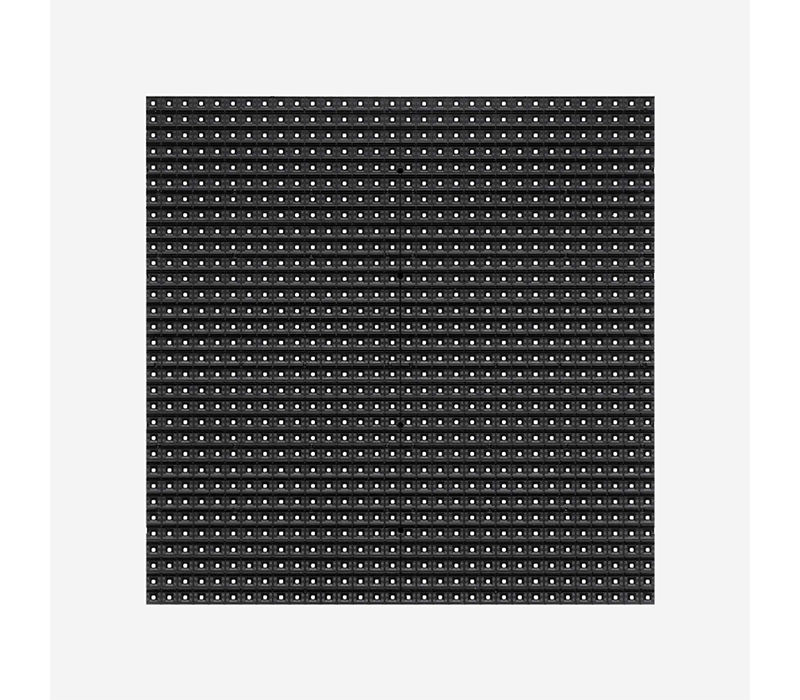

| Module Dimension(WxH) | 320x320mm / 12.59"x12.59" | ||||||

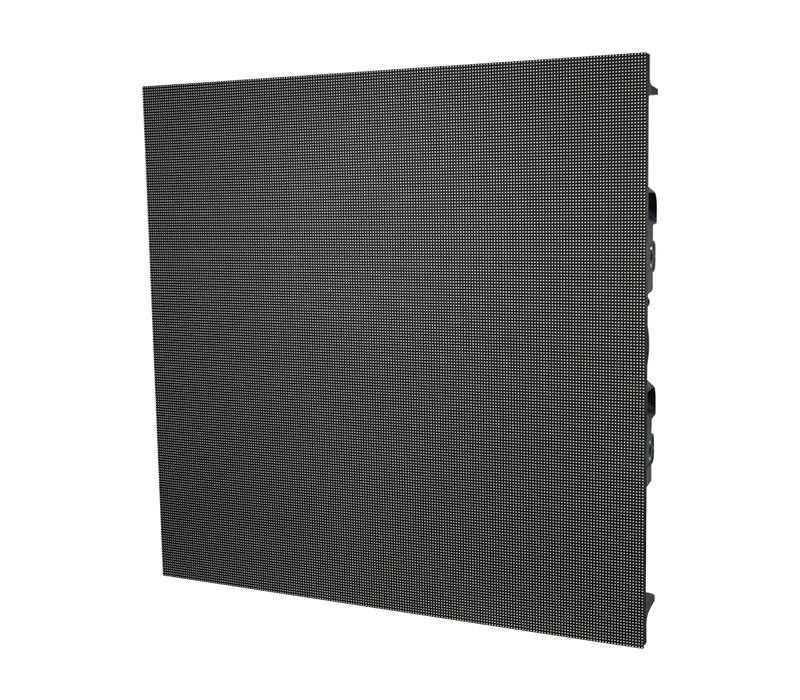

| Panel Dimension(WxHxD) | 960x960x112mm / 37.79"x37.79"x4.4" | ||||||
| No. of Module/panel(WxH) | 3x3 | ||||||
| Module Resolution | 128x128px | 104x104px | 80x80px | 64x64px | 48x48px | 40x40px | 32x32px |
| Panel Resolution | 384x384px | 312x312px | 240x240px | 192x192px | 144x144px | 120x120px | 96x96px |
| Panel Material | Die-casting Aluminum | ||||||
| Panel Weight | 35kg / 77.16lbs | ||||||
| Gray Scale | 16bit | ||||||
| Contrast Ratio | 4000:1 | ||||||
| Avg. Power Consumption | 230w/m2 | ||||||
| Max. Power Consumption | 650w/m2 | ||||||
| Operating Temp/Humidity | -10°C - 60°C / 10% - 60% | ||||||
| Storage Temp/Humidity | -30°C - 60°C/ 10% - 60% | ||||||
| Refresh Rate | 3840hz | ||||||
| Brightness | ≥5000 nits | ||||||
| Viewing Angle(H/V) | 160°/140° | ||||||
| Expected Lifetime | 100,000hrs | ||||||
| Max. Stacking/Hanging | 10 | ||||||
| Service | Front | ||||||
| IP Rating(Front/Rear) | IP65/IP54 | ||||||
| Certification | CCC,CE,ETL,RoHS | ||||||
