UHD Series
-
16:9 Ultral HD LED Display.

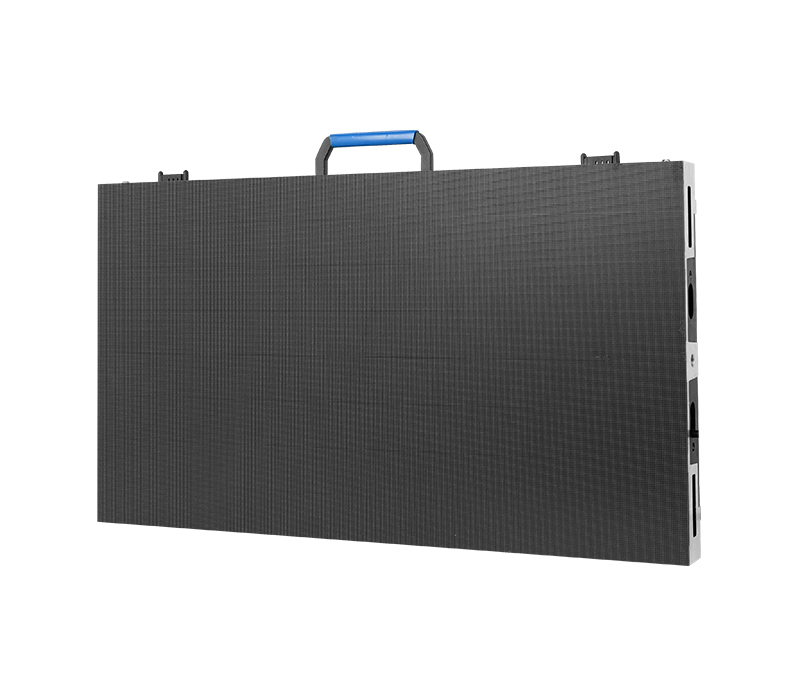

The panel size is 600×337.5mm. The pixel pitch can be available from P0.7-P2.3, which can easily achieve 2k, 4k, 8k resolution with SMD, GOB and COB technology.
| UHD-1.2 | UHD-1.5 | UHD-1.8 | UHD-2.3 | |
| Physical Pitch | 1.25mm | 1.56mm | 1.87mm | 2.34mm |
| Pixel Configuration | SMD1010 | SMD 1010 | SMD 1515 | SMD2121 |
| Pixel Density | 648000px/m2 | 410881px/m2 | 286225px/m2 | 182329px/m2 |
| Module Dimension(WxH) | 300×168.75mm / 11.81"x6.64" | |||
| Panel Dimension(WxH) | 600×337.5mm / 23.62"x13.28" | |||
| No. of Module/panel(WxH) | 2x2 | 2x2 | 2x2 | 2x2 |
| Module Resolution | 240x135px | 192x108px | 160x90px | 128x72px |
| Panel Resolution | 480x270px | 384x216px | 320x180px | 256x144px |
| Panel Material | Die-casting Aluminum | |||
| Panel Weight | 6.3kg / 13.88lbs | |||
| Gray Scale | 16bit | |||
| Contrast Ratio | 4000:1 | |||
| Avg. Power Consumption | 300w/m2 | |||
| Max. Power Consumption | 600w/m2 | |||
| Operating Temp/Humidity | -10°C - 60°C / 10% - 60% | |||
| Storage Temp/Humidity | -30°C - 60°C/ 10% - 60% | |||
| Refresh Rate | 7680hz | |||
| Brightness | 600~800nits | |||
| Viewing Angle(H/V) | 160°/140° | |||
| Expected Lifetime | 100,000hrs | |||
| Service | Front | |||
| IP Rating(Front/Rear) | IP40/IP21 | |||
| Certification | CCC,CE,ETL,RoHS | |||
