OD Series
-

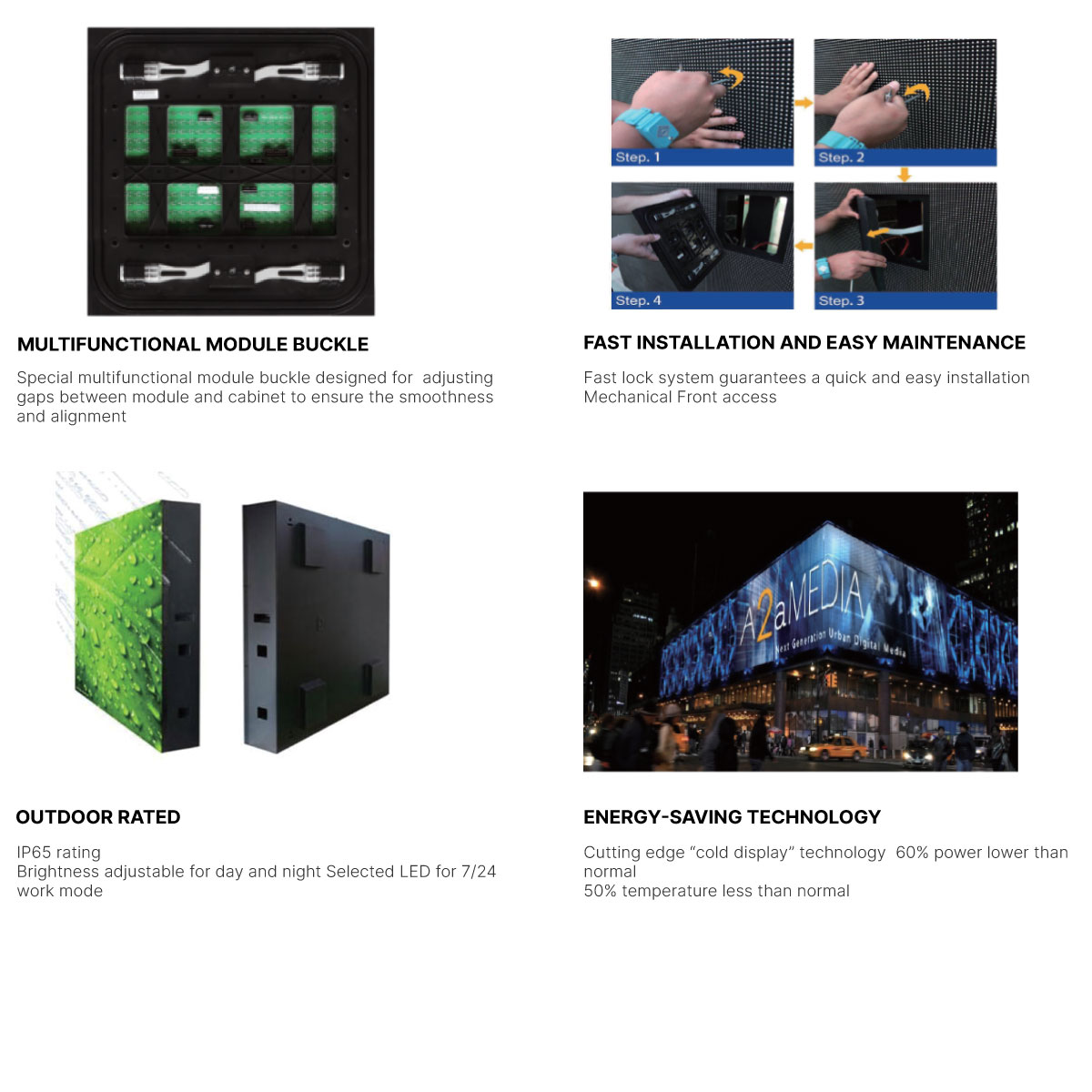

Fully front service outdoor led display, ideal for wall-mounting installation. have 4.81, 5.95, 6.67, 8, 10mm pixel pitch for option. can meet all kinds of advertising display needs
| OD-3 | OD-4 | OD-5 | OD-6 | OD-10 | |
| Physical Pitch | 3.91mm/0.15" | 4.81mm/0.19" | 5.95mm/0.23" | 6.67mm/0.26" | 10mm/0.39" |
| Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD3535 |
| Pixel Density | 65536px/m2 | 43264px/m2 | 28246px/m2 | 22500px/m2 | 10000px/m2 |

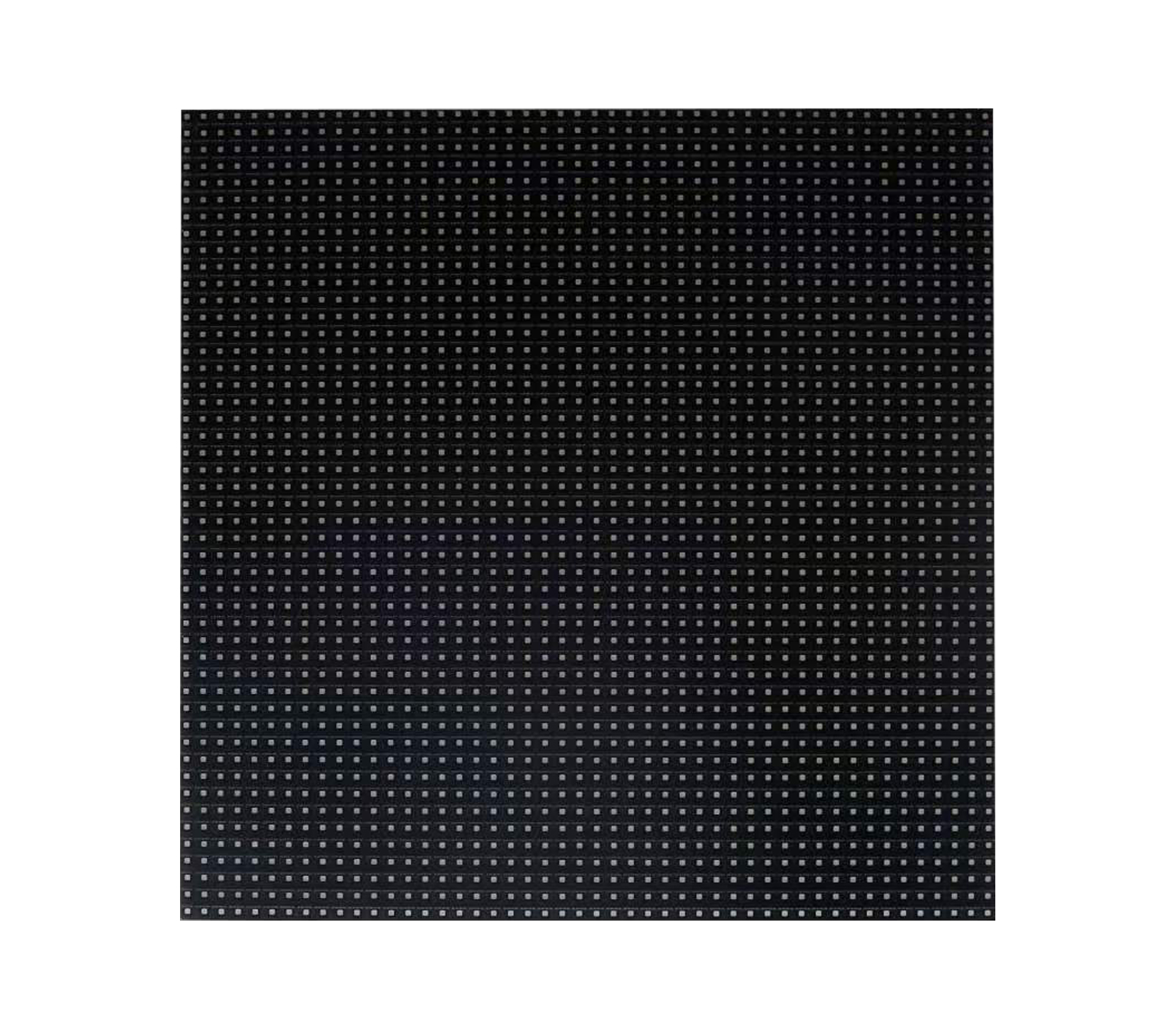

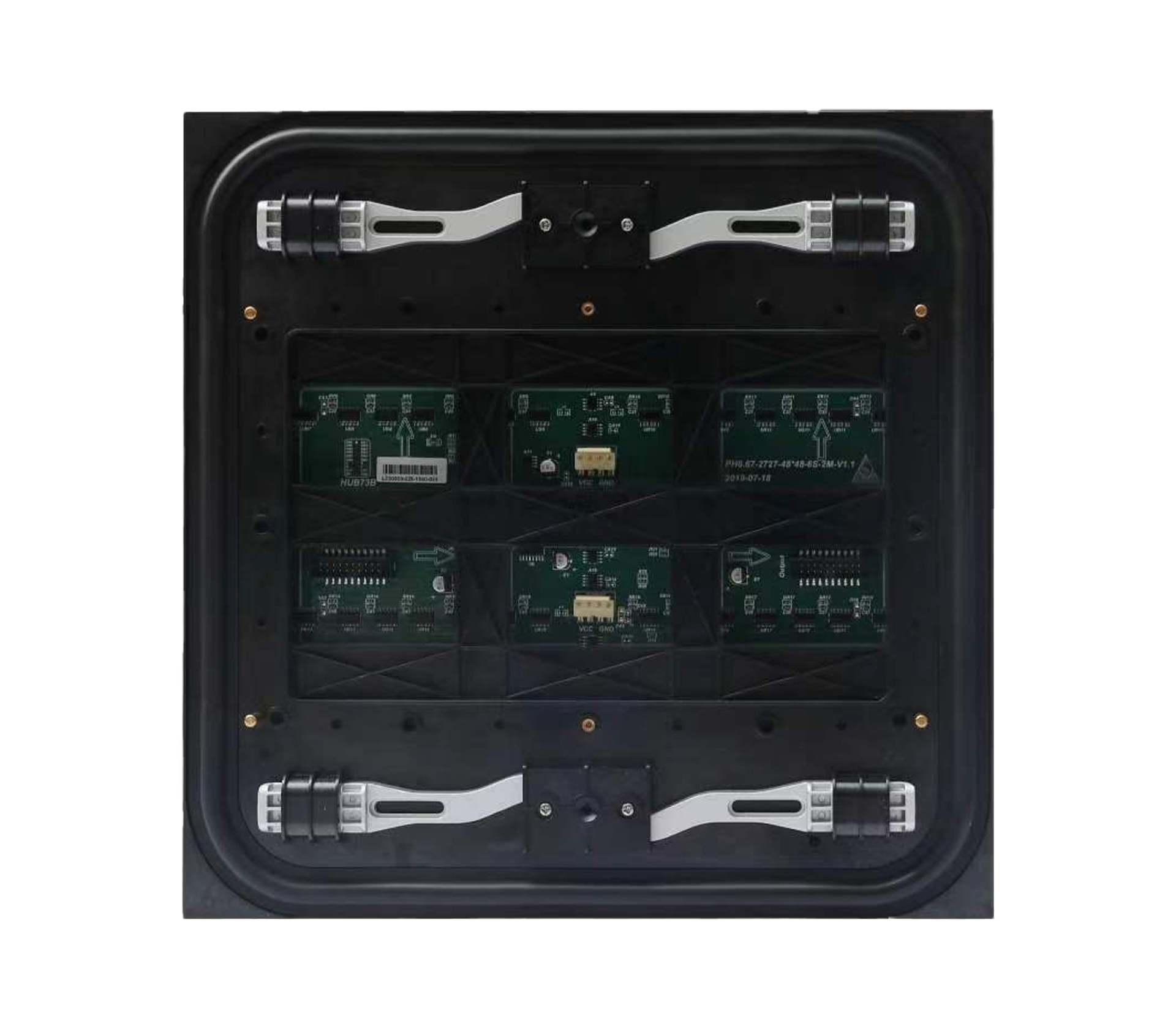

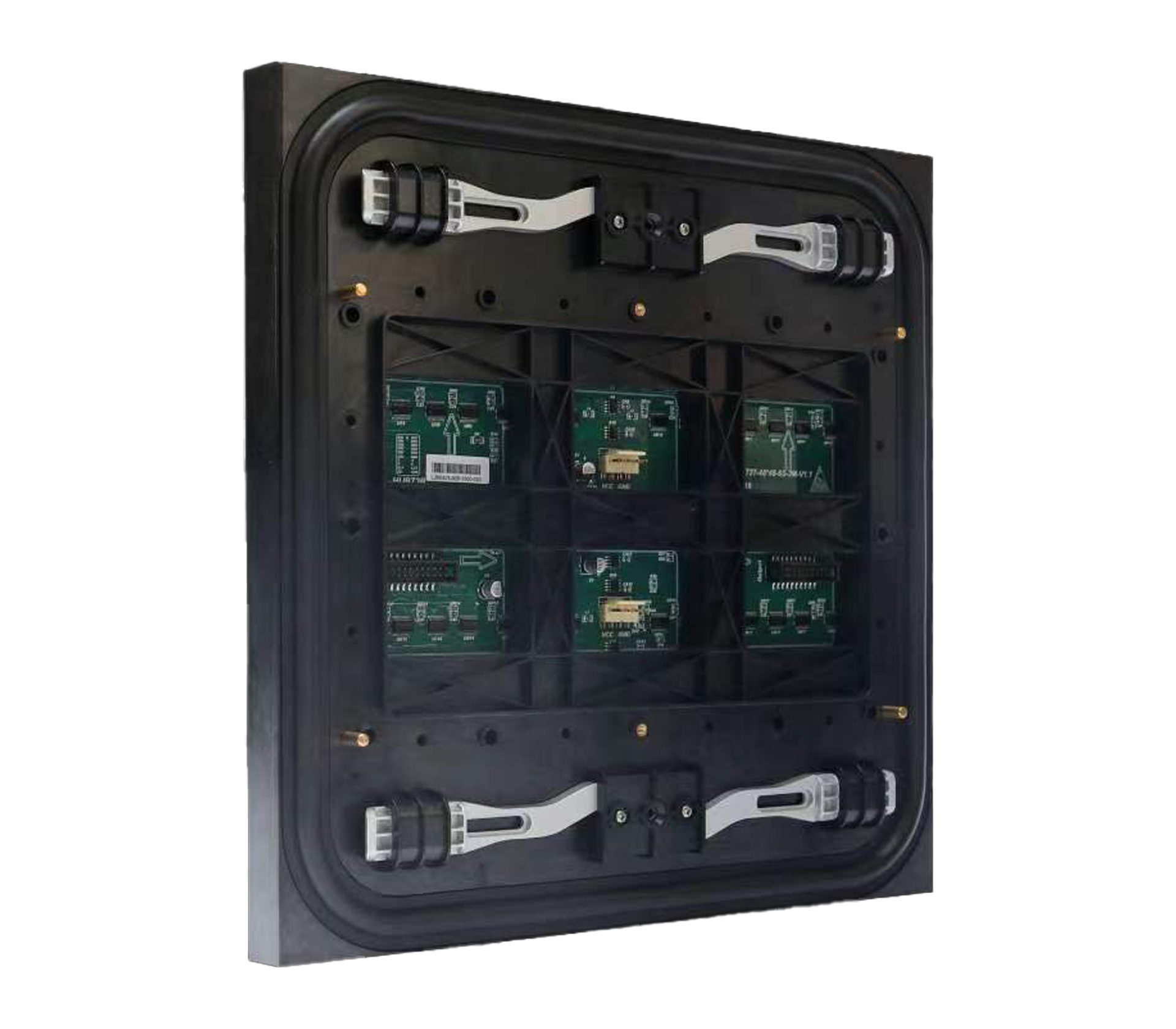

| Module Dimension(WxH) | 250x250mm/9.84"x9.84" | 250x250mm/9.84"x9.84" | 250x250mm/9.84"x9.84" | 320x320mm/12.59"x12.59" | 320x320mm/12.59"x12.59" |
| Panel Dimension(WxHxD) | 1000x1000mm/39.37"x39.37" | 1280x960mm/50.39"x37.8" | |||
| No. of Module/panel(WxH) | 4x4 | 4x4 | 4x4 | 4x3 | 4x3 |
| Module Resolution | 64x64px | 52x52px | 42x42px | 48x48px | 32x32px |
| Panel Resolution | 256x256px | 208x208px | 168x168px | 192x144px | 128x96px |
| Panel Material | steel/aluminum | ||||
| Panel Weight | 65kg/45kg （143.3lbs / 99.2lbs） | ||||
| Gray Scale | 16bit | ||||
| Contrast Ratio | 2000:1 | ||||
| Avg. Power Consumption | 360w/m2 | ||||
| Max. Power Consumption | 900w/m2 | ||||
| Operating Temp/Humidity | -10°C - 60°C / 10% - 60% | ||||
| Storage Temp/Humidity | -30°C - 60°C/ 10% - 60% | ||||
| Refresh Rate | >1920hz | ||||
| Brightness | ≥6500 nits | ||||
| Viewing Angle(H/V) | 160°/140° | ||||
| Expected Lifetime | 100,000hrs | ||||

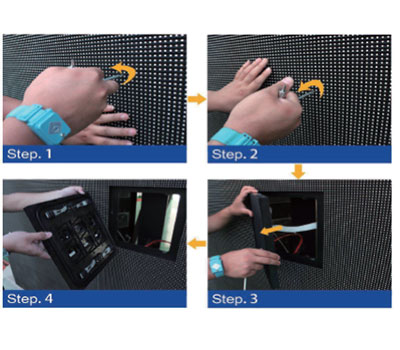

| Service | Front | ||||
| IP Rating(Front/Rear) | IP65/IP54 | ||||
| Certification | CCC,CE,ETL,RoHS | ||||
